Rolling Steel Service Doors
Superior Performance & Engineered To Last
The breadth of the Overhead Door™ Rolling Steel Service Doors ensures that your project specifications will be met with ease and style. Ideal for situations where side room and headroom are at a premium, our upward-coiling service doors fit openings up to 1500 sq. ft. and are available with the industry’s widest array of slat profiles, curtain materials, and colors, offering a virtually endless array of options to satisfy both aesthetic considerations and working requirements.
Strength • Versatility • Good Looks
A comprehensive line of rolling steel doors is offered with insulated or non-insulated slats made of galvanized steel, stainless steel, or aluminum. A Variety of profiles, finishes, materials, and options. Overhead Door Brand offers a wide range of rolling service door curtains to meet the needs of various project requirements. Rolling service doors are available with a variety of slat profiles, materials, gauges, and finishes.
Ideal Applications Include
Public Facilities
Parking Garages
Security
Automotive
Government Facilities
Overhead Door™ Rolling Steel Service Doors
Coil-Away™ Model 600
The Model 600 is ideal for light commercial applications where economy and functionality are essential. A unique, rolled galvanized steel slat curtain with a bottom weather seal comes standard, while the hood, wind load, and chain hoist operation are optional features that can expand its uses.
Material: Steel
Max Width: 16′ (4877 mm)
Max Height: 16′ (4877 mm)
Warranty: 24-month limited
Curtain
26-gauge galvanized steel up to 12’4″ width;
24-gauge galvanized steel up to 16′ width
Rolling Steel Service Doors 610/620
When your project calls for a rolling service door that is as strong and durable as it is handsome and versatile, the Rolling Service Door Model 610 doors are up to the task. Standard wind load is 20 psf. Higher wind load is available as an option. The Model 610 is built with a standard galvanized steel curtain, or an optional stainless steel or aluminum curtain. The standard curtain slat is the attractive C-187 curved profile, with additional slat options available in curved and fla
The Stormtite™ Rolling Service Door Model 620 doors are strong and durable yet handsome and versatile. These doors are ideal for keeping climate-controlled air in and the elements out. These doors also offer wind load protection up to 20 psf. Stormtite™ 620 offers the option of a steel, stainless steel, or aluminum curtain in an array of finishes and colors. For enhanced thermal efficiency, the 620 is furnished with flat slat profiles only.
Curtain:
- 16 ga. galvanized steel up to 30’4″width (F-265 only)
- 18 ga. galvanized steel up to 30’4″ width*
- 20 ga. galvanized steel up to 25’4″ width*
- 22 ga. galvanized steel up to 18’4″ width*
- 24 ga. galvanized steel up to 15’4″ width*
* not all slat profiles
Rolling Steel Service Doors 610
Rolling steel door model 610 is a perennial best-seller for a good reason. The standard features exceed the norm for quality, and many options allow for true customization.
Material: Steel
Max Width: 30’4″ (9246 mm)
Max Height: 28’4″ (8636 mm)
Wind Load: 20 psf
Warranty: 24-month limited
Rolling Steel Service Door Stormtite™ 620
These rolling steel doors are ideal for keeping climate-controlled air in and the elements out. Like the Model 610, the Stormtite™ 620 offers the option of a steel, stainless steel, or aluminum curtain in various finishes and colors.
Material: Steel
Max Width: 30’4″
Max Height: 28’4″
Wind Load: 20 psf
Warranty: 24-month limited
Rolling Steel Service Doors 625
The Stormtite™ Rolling Service Door Model 625 heavy-duty doors feature insulated slats in a variety of materials— galvanized steel, stainless steel, or aluminum — standard windload is 20 psf. Higher windload is available as an option. Ideal for projects that require a rolling steel door offering thermal efficiency and versatile, attractive design.
Insulation Type: Foamed-in-place, CFC-free polyurethane
R-Value: 7.7
Material: Steel
Max Width: 30’4″ (9246 mm)
Max Height: 28’4″ (8636 mm)
Wind Load: 20 psf
Warranty: 24-month limited
Curtain
24 ga. Galvanized steel front
24 ga. Galvanized steel back

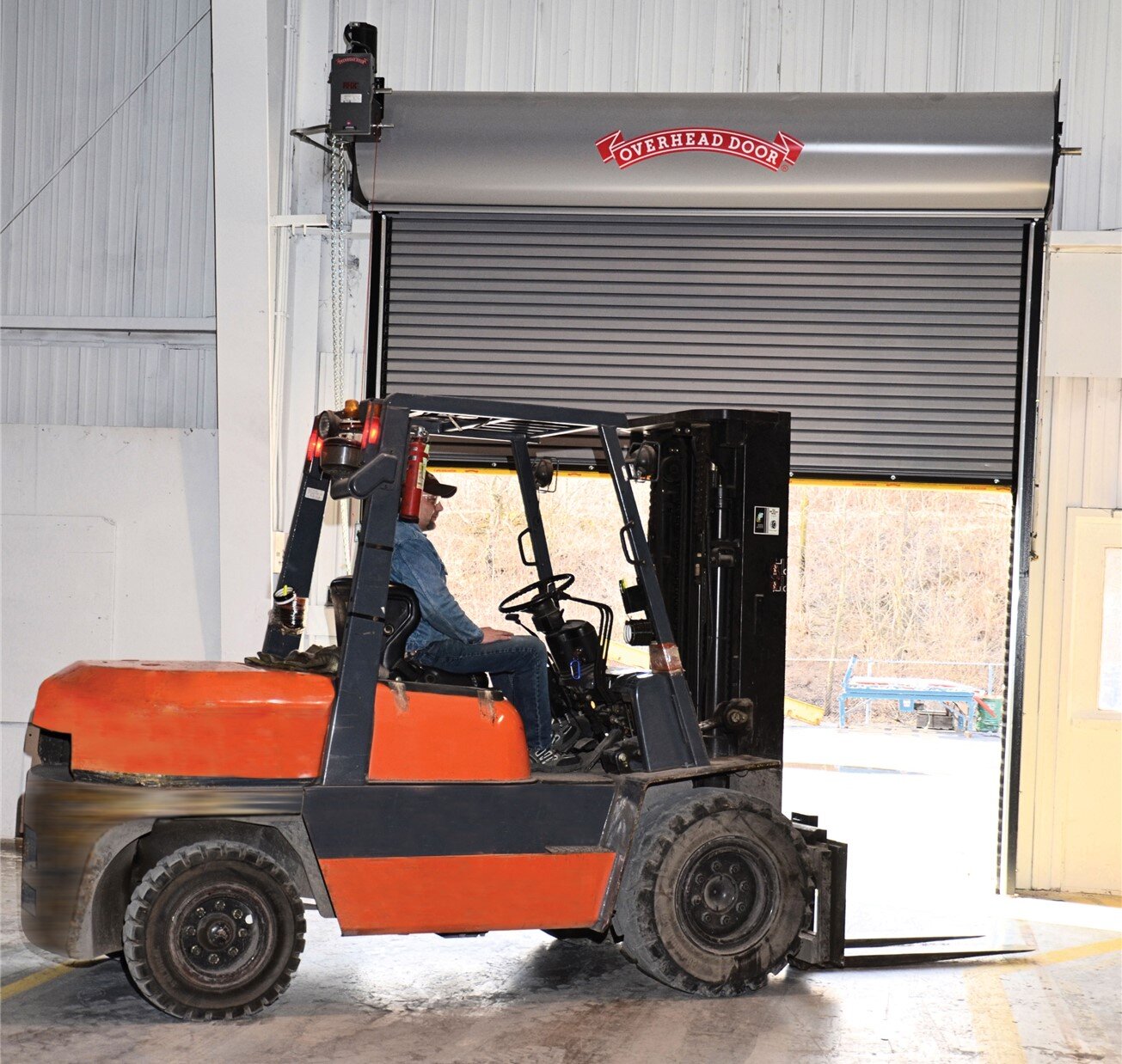

Rolling Steel Service Door 627
The Stormtite™ AP Model 627 is the best-in-class insulated, heavy-duty rolling service door. It is engineered to supply advanced performance in industrial and general commercial applications where thermal performance, climate control, and security are primary concerns.
Insulation Type: Foamed-in-place, CFC and HCFC-free polyurethane
U Factor: 0.87
R Value: 10.9
Material: Steel
Max Width: 30’4″
Max Height: 19’4″
Wind Load: 20 psf
Warranty: 24-month limited
EverServe® Heavy Duty Springless Service Doors
The EverServe™ door platform is an industry-leading, performance-driven solution to enhance our rolling steel product line. The EverServe™ door system provides customers with high cycle performance, improved security, and durability, while delivering a reliable system that minimizes downtime through ease of serviceability.
EverServe® Model 610S
Material: Steel
Max Width: up to 30′
Max Height: up to 20′
Wind Load: 20 psf
Warranty: 36 month limited
EverServe® Model 620S
Material: Steel
Max Width: up to 30′
Max Height: up to 20′
Wind Load: 20 psf
Warranty: 36 months limited
Curtain Material: Galvanized steel
EverServe® Model 625S
Insulation Type: Yes
R Value: 7.71
Material: Steel
Max Width: up to 30′
Max Height: up to 20′
Wind Load: 20 psf
Warranty: 36 months limited
Curtain Material: Galvanized steel
RapidSlat® Rolling Service Doors Model 611 / 621 / 626
RapidSlat® is an extension of the rolling steel product line, providing customers with speed and product longevity. It includes the same general construction as our rolling steel line, with significant enhancements to provide increased speed, security, and durability.
RapidSlat® 611
Material: Steel
Max Width: up to 30′
Max Height: up to 20′
Warranty: 5 year limited
Curtain Material: Galvanized steel.
RapidSlat® Model 621
Material: Steel
Max Width: up to 30′
Max Height: up to 20′
Wind Load: 20 psf when optional wear strips are not specified
Warranty: 5 year limited
Curtain Material: Galvanized steel
RapidSlat® Model 626
Insulation Type: Yes
R Value: 7.71
Material: Steel
Max Width: up to 30′
Max Height: up to 20′
Wind Load: 20 psf when optional wear strips are not specified
Warranty: 5 year limited
Curtain Material: Galvanized steel
