Rolling Sheet Doors
When your project requires an attractive and solidly constructed rolling sheet door that is easy on your budget, Overhead Door™ rolling sheet doors are a perfect solution. These door systems incorporate innovative design elements that enable fast installation and ensure smooth operation for enhanced door life.
Available in a variety of colors and sizes to fit openings from 3′ wide by 7′ high to 20′ wide by 16′ high (914 mm by 2134 mm to 6096 mm by 4877 mm), these full-feature doors are an ideal choice when functionality is as important as value, quality, and aesthetics.

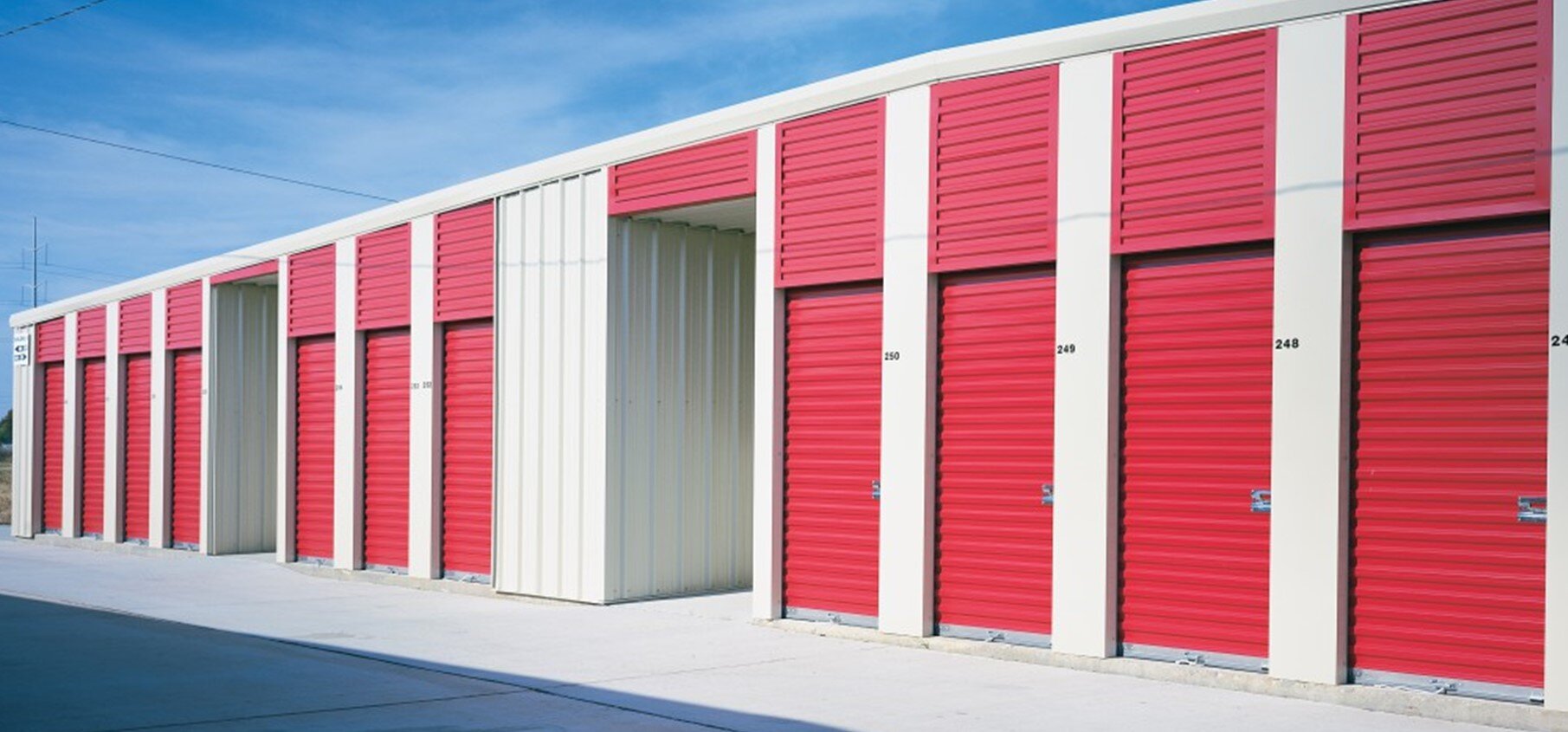

Rolling Sheet Doors, Self-Storage Doors
Design Options & Features
Key features include quick-connect components that simplify installation without sacrificing strength. A single, through-hole universal guide can be installed quickly and easily in concrete, masonry, steel, or wood, requiring minimal sideroom. Stepped curtain rings minimize headroom by ensuring a tight curtain wrap, and standard roller bearings eliminate steel-on-steel contact for quieter, more effortless operation and extended life.
Door Construction & Features:
Strong And Durable Construction For Improved Operation And Door Life
- High-strength galvanized steel curtain enhances strength and maximizes wind load performance.
- A unique curtain profile facilitates smooth operation and minimizes curtain damage.
- Stepped rings allow tight, uniform curtain wrap and minimize headroom requirements.
- Abrasion-resistant polypropylene webbing along both guide edges improves door operation, minimizes curtain nesting and scratching
- Bearings prevent steel-to-steel contact, improve door operation and increase door shaft life.
- Extruded aluminum-reinforced bottom bar assembly enhances door strength and operation.
- Bulb-type astragal ensures a tight seal to the floor.
- Lock assemblies enhance door system security.
Broad Size Ranges And Color Options
- Commercial door sizes to 20′ wide by 16′ high (6096 mm by 4877 mm).
- Self-storage door sizes range from 3′ wide by 7′ high (914 mm by 2134 mm) to 10′ wide by 10′ tall (3048 mm by 3048 mm).
- A spectrum of curtain colors.
Fast And Easy Installation:
- Quick-connect head plate eliminates the need for multiple fasteners (available on 770SS only).
- The quick-connect bottom bar stops, minimizes fasteners and allows easy insertion of the curtain into the guides.
- The universal guide allows fastening in concrete, masonry, or wood jambs and fastening or welding to steel jambs.
- Through-hole design reduces side room requirements.
- Non-handed chain hoist (780CD and 790CW) with quick-connect features simplifies and speeds on-site installation.
Special Design Features For Wind Load Applications
(790CW Series)
The heavy-duty guide allows the rolling sheet door system to meet stringent wind load specifications.
Curtain wind locks reinforce curtains and enhance wind load performance and smooth operation.
Colors
[ezcol_1fifth]
White
Glossy White
Silhouette Gray
[/ezcol_1fifth] [ezcol_1fifth]
Teal
Dark Teal
Forest Green
[/ezcol_1fifth] [ezcol_1fifth]
Bronze
Walnut Brown
[/ezcol_1fifth] [ezcol_1fifth]
Desert Tan
Polar Blue
[/ezcol_1fifth] [ezcol_1fifth_end]
Garnet Red
Royal Blue
[/ezcol_1fifth_end]The 770SS rolling sheet door is ideal for lighter-duty self-storage facilities that require a quality door that installs quickly, operates dependably, and requires minimal maintenance.
The 780CD rolling sheet doors are designed for medium-duty environments where a high wind load-rated door is not required.
The 790CW rolling sheet doors fit the job when your project requires a door that can handle high wind load conditions yet is attractive, versatile, and economical.

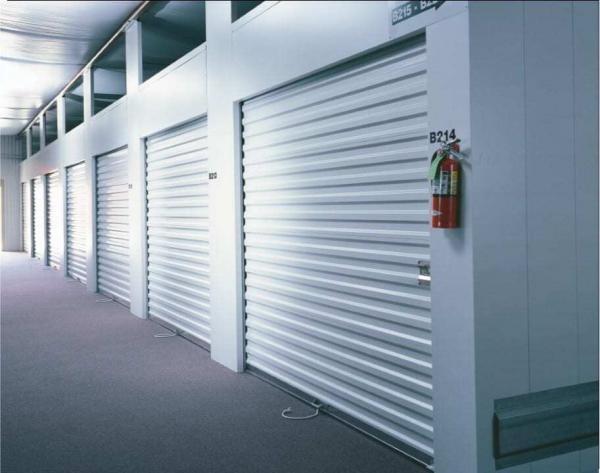

Rolling Steel Sheet Doors 770SS
The Model 770SS is ideal for lighter-duty self-storage facilities that require a quality door that installs quickly, operates dependably and requires minimal maintenance. Like the other doors of our rolling sheet door line, this 26-gauge door features quick-connect components that simplify and speed up installation while ensuring door sturdiness. Stepped counterbalance rings and a unique curtain profile ensure a tight curtain wrap resulting in a smooth operating door and minimal nesting.
A host of other standard features from standard roller bearings and dual rub strips on both guide edges and both front edges of the curtain further promote smooth operation and longer life. Available in various colors, the Model 770SS represents a good choice and value.
Standard max width: 10′ (3048 mm)
Standard max height: 10′ (3048 mm)
Curtain Material: High-Strength Steel
Door Options:
- Additional exterior curtain slide lock
- Interior bottom bar slide bolt set (left and right-handed)
- Header draft seal
- Wind load: Integrated curtain wind locks and guide to withstand wind load to minimum design pressures of 36/-36 psf (175/-175 kgf/sq m)
Rolling Steel Sheet Doors 780CD
The Model 780CD rolling sheet door is designed to fit openings up to 16′ by 16′ with ease, versatility, and good looks. The 780CD is designed for medium-duty environments where a high wind load-rated door is not required. It features quick and easy assembly without sacrificing stability or durability. It can be mounted directly to concrete, masonry, steel, or wood jambs.
Like the Model 790CW, this heavy-duty door is fabricated of high-strength, 26-gauge galvanized steel curtain sections for superior performance. It also features our innovative quick-connect components that allow quick and easy assembly without sacrificing stability or durability. Stepped counterbalance rings and a unique curtain profile minimize nesting.
The universal guide design further simplifies installation by allowing mounting directly to concrete, masonry, steel, or wood jambs. Additional standard features such as dual rub strips on both edges of the guide and flexible webbing on both front edges of the curtain to minimize nesting ensure that the Model 780CD will provide long-lasting, lower-cost performance for years to come.
Standard max width: 16′ (4877 mm)
Standard max height; 16′ (4877 mm)
Curtain Material: High-Strength Steel
Door Options:
- Electric operator (Model RMX®)
- Chain hoist with reduced drive, non-handed quick-connect components (standard on some Model 780CD doors, depending upon size)
- Curtain lock; two-bolt, double shackle lock, or cylinder lock
- Jamb extension brackets for steel/wood jambs
- Header draft seal
*Cylinder locks and padlocks not provided

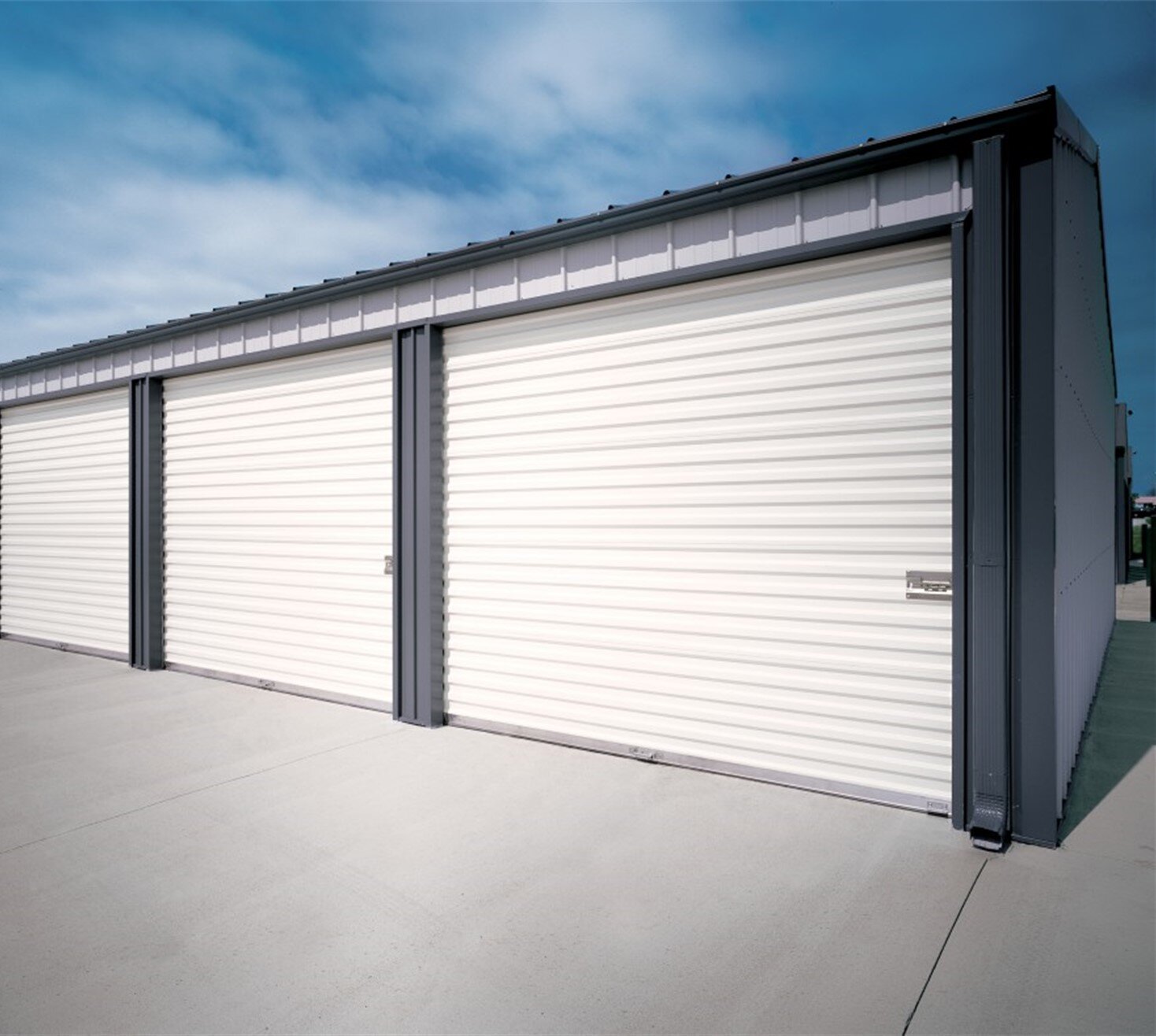

Rolling Steel Sheet Doors 790CW
When your project requires a door that can handle high wind load conditions yet is attractive, versatile, and economical, the 790CW fits the job. It is designed for fast installation, smooth operation, and low maintenance. This rolling sheet door is rated for a design pressure from 22/-22psf (for a 20’0” wide door) to 41/-41psf (for a 10’0” wide opening), and can be built up to 16’0” tall. This rolling sheet door is available in 12 standard colors.
Fabricated of high strength, 26-gauge galvanized steel curtain sections, 14-gauge universal guides, and steel bottom bar angle, the 790CW rolling sheet door is solid and durable. With quick-connect components, a universal through-hole guide design, a unique curtain profile, and stepped counterbalance rings that minimize nesting, this door is designed for fast installation, smooth operation, and low maintenance.
Standard max width: 20′ (6096 mm)
Standard max height: 16′ (4877 mm)
Curtain Material: High-Strength Steel
Door Options:
- Electric operator (Model RMX®)
- Chain hoist with reduced drive, non-handed quick-connect components (standard on some 790CW doors, depending upon size)
- Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) (right or left-handed)
- Jamb extension brackets
- Full-length angle jamb brackets
- Header draft seal
*Cylinder locks and padlocks not provided
