Security Grilles
Overhead Door™ security grilles provide an array of attractive solutions for a spectrum of retail, commercial and industrial applications. Our side-folding grilles boast the shortest stacking dimension of any grille available today, and feature a handsome clear anodized finish (standard) in a variety of patterns and optional colors. We also offer a line of upward-coiling grilles. Constructed of aluminum, stainless or galvanized steel — with optional electric motor — these grilles are designed for durability and easy operation. Our comprehensive line of security grilles affords both reliability and peace of mind.
High-Performance • Low Maintenance • Attractive • Secure
Constructed of aluminum, stainless, or galvanized steel, with an optional electric motor, these grilles are designed for durability and easy operation. Our comprehensive line of security grilles affords both reliability and peace of mind.
Security Grilles
We offer a comprehensive range of security grilles, including upward-coiling and side-folding models, to meet your specific needs.
Upward-coiling grilles are designed for durability and easy operation. They are constructed of aluminum, stainless, or galvanized steel, with the option to add an electric motor.
Side-folding grilles offer the shortest stacking dimension of any grille available today and feature a handsome clear anodized finish (standard) in a variety of patterns and optional colors. This is a great option when headroom is limited, or the grille must follow a radius.
EverServe™ Springless Security Grilles – Model 671S
The EverServe™ Springless Security Grille – Model 671S is a performance driven solution built upon the EverServe™ platform, providing an upward coiling security grille that is optimized for high cycle life. Downtime and maintenance requirements are reduced thanks to the springless barrel design, eliminating the need to replace failed or broken springs. This long-lasting grille also features an easy-to-operate manual chain override, ensuring operation during a power outage.
.
EverServe™ Springless Security Grille. Straight Lattice Pattern
Material: Steel
Max Width: up to 30′
Max Height: up to 14’4″
Warranty: 24 months, 300,000 cycles
Curtain Material: Galvanized steel
Applications:
- Warehouse Solutions
- Government Facilities
- Manufacturing
- Security
- Automotive
- Food & Beverage
RapidGrille® AP Security Grille Model 676
The RapidGrille™ Advanced Performance Upward Coiling – Model 676 was developed to supply advanced performance in industrial, security, and general commercial applications where tenants’ security, long-term asset value, and minimized interruption to facility access are primary concerns. This advanced security performance grille provides facilities with maximized air movement and visual access while delivering more safety features than a standard security grille. The reliable springless design and operation provide dependable performance and asset longevity.
,
RapidGrille® AP Security Grille Model 676 6, Straight Lattice - Arched
Material: Steel
Max Width: 30’4″ (9,246 mm)
Max Height: 14’4″ (4,369 mm)
Warranty: 60-month on motor; 24-month/300,000 cycles on door components
Curtain Material: Galvanized steel
Applications:
- Government Facilities
- Parking Garage Facilities
- Manufacturing and Industrial Facilities
- Public Facilities
Upward Coiling Security Grilles
Models 670 / 671 / 674
Overhead Door™ upward-coiling grilles (Models 670, 671 & 674) provide an attractive yet functional means to secure areas where public access must be restricted. These ruggedly constructed grilles provide security without sacrificing visual access, air circulation, or light infiltration. Available with an optional electric operator, our rolling grilles are well-suited to most environments and applications.
Upward Coiling – Model 670 features an aluminum curtain, providing an attractive and versatile solution for both interior and exterior use in various retail, industrial, and commercial settings.
Upward Coiling – Model 671 is fabricated of galvanized steel and offers an attractive and versatile solution for interior or exterior use in a variety of retail, industrial, and commercial settings.
Upward Coiling – Model 674 is fabricated from perforated aluminum panels and offers an attractive and secure solution for interior use in various retail, healthcare, and educational settings.
#
Model 670, Straight Lattice Pattern, Airport Deli
Model 670
Material: Steel
Warranty: 12 month limited
Curtain Material: Aluminum, Mill Finish
#

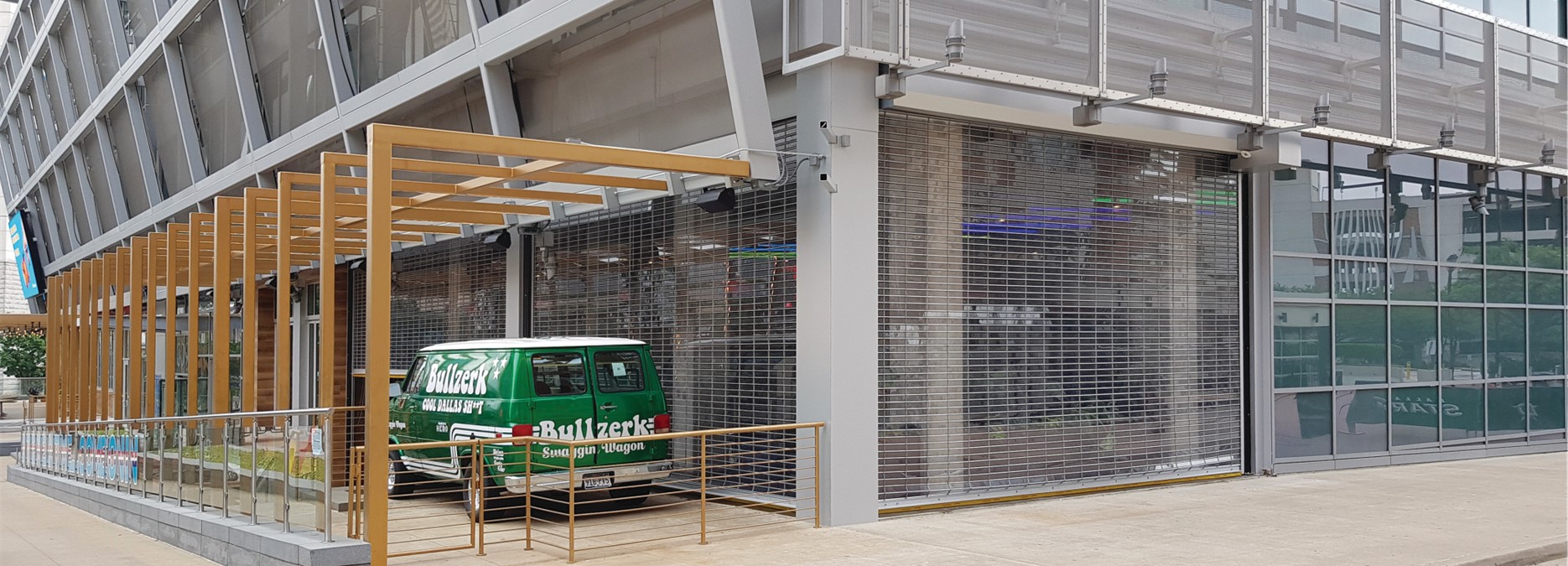

Model 671, Straight Lattice Grille Pattern
Model 671
Material: Steel
Warranty: 12 month limited
Curtain Material: Galvanized Steel or Optional Stainless Steel (2B or 4)
#
Security Grille, Model 674, Perforated
Model 674
Material: Steel
Warranty: 12 month limited
Curtain Material: Aluminum, Clear Anodized
Side-Folding Full Enclosure Security Grilles
Models 675 / 677 / 678 / 679
Overhead Door™ side-folding full closure grilles are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls and airport concourses. The full closure side folding grille product line includes four panel materials: perforated steel, clear polycarbonate, tempered glass, and aluminum. All four models are available in both standard-body and wide-body versions.
Model 675 features painted perforated steel for full ventilation. Visibility: 51% of 4-3/4″ (121mm) viewable area. These closures are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls, airports, and concourses.
Model 677 features clear, fire-retardant polycarbonate for enhanced visual access and non-breakable durability. Visibility: 100% of 4-3/4″ (121 mm) viewable area.
Model 678 features tempered glass for a crystal-clear view and high durability. Visibility: 100% of 4-3/4″ (121mm) viewable area. These closures are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls, airports, and concourses.
Model 679 features a full-height, solid aluminum design for maximum security. 7″ standard-width panels constructed of full-height, solid aluminum that slide into aluminum hinges. Visibility: 0%. These closures are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls, airports, and concourses.
.
Model 675, Clear Polycarbonate For Visual Access
Model 675
.
Model 677, Clear Fire-Retardant Polycarbonate For Visual Access
Model 677
.
Model 678, Tempered Glass
Model 678
.
Model 679, Solid Aluminum
Model 679
Side-Folding Open Air Grilles
Models 681/683
When security is a priority, but you want to maximize air circulation, light infiltration, and visual access to interior spaces, the side-folding open air security grilles are an ideal choice. Short on the space required for installation, and long on handsome good looks, these grilles secure the premises and guard against theft and debris with superior compactness and varied design possibilities.
Side-Folding Open Air – Model 681 curtain design incorporates wide body 2″ (51 mm) high bottom plates of truss-like aluminum and 5 1/4″ (133 mm) high top plates that frame each 11 1/4″ (286 mm) wide panel. Each curtain panel is constructed of 1″ (25 mm) aluminum plates spaced at 12″ (305 mm) horizontal intervals incorporating three vertical rods spaced 1 7/8″ (48 mm) and covered with aluminum tubes.
Side-Folding Open Air – Model 683 curtain design incorporates minimum 4″ (133 mm) high bottom plates of truss like clear anodized aluminum and 5 1/4″ (133 mm) high top plates that frame each 6 11/16″ (170 mm) wide panel. Each curtain panel is constructed of 1/8″ (3 mm) by 5/8″ (16 mm) by 6″ (15 mm) horizontal clear anodized aluminum links that slide onto 5/16″ (8 mm) vertical rods. Links are held in place by 1/2″ (13 mm) clear anodized aluminum spacer tubes on alternate rods. (Only anodized finishes available.)
#
Side-Folding Open-Air Security Grilles, Model 681, Food Court
Model 681
Material: Steel
Warranty: 24 months OEM limited
Curtain Material: Truss-like aluminum
#
Side-Folding Open-Air Security Grilles, Model 683, Food Court
Model 683
