Industrial and Commercial Non-Insulated Sectional Steel Doors
Superior Performance & Built To Last
Overhead Door Company of Southern California™ offers a comprehensive line of Non-Insulated Sectional Steel Doors and insulated steel products encompassing one of the industry’s most complete selections of panel profiles, gauges, track styles, and hardware for commercial sectional door systems.
Non-Insulated Sectional Steel Doors to satisfy applications where Durability,
Reliability & Economy are Top Priorities.
A wide selection of Overhead Door™ sectional steel doors and insulated steel doors is available to satisfy applications where durability, reliability, and economy are top priorities. An array of door panel profiles, tracks, and hardware, along with specialized options, enables you to further customize these doors to meet your specific project requirements.
Top-quality materials, excellent field service, and an optional maintenance program contribute to extended door life, low maintenance costs, and maximum productivity.
Ideal Applications Include
Manufacturing & Warehouse Solutions
Public Facilities
Auto & Parking Facilities
Healthcare
Security
Government Facilities
Non-Insulated Sectional Steel Doors Overview
Features
- 16, 20, or 24-gauge steel door panels result in a solidly constructed door for years of dependable service
- Standard steel doors available in sizes up to 32’2″ (9804 mm) in width; 24’1″ (7341 mm) in height
- Insulated steel doors available in up to 30’2″ (9195 mm) in width; 24’1″ (7341 mm) in height
- Heavy-duty track and hardware are fabricated of high-quality galvanized steel and engineered for precise, trouble-free performance
- Flexible PVC bottom weatherseal lessens the conductivity of heat and cold, minimizes air and water penetration, and accommodates irregular floor conditions
- Insulated steel doors provide thermal efficiency with an R-value of 7.35
- Baked-on, polyester paint finish eliminates field painting and provides long-lasting protection against the elements
- Superior panel strength and well-engineered track are designed to meet many wind load requirements and codes
Door Options
- Glazing choices include DSB glass, plexiglas, tempered glass, clear lexan, wire glass, and polycarbonate.
- Full-section or individual-panel glazing meets the requirements for external light and visitor identification.
- Higher-cycle springs in optional 25k, 50k, 75k or 100k-cycles promote long-life in high-usage applications
- Solid construction withstands wind loading of 20 psf, with an optional higher wind load to meet additional requirements.
- Optional steel strutting reinforces structural integrity on wider doors.
- Electric and chain hoist operation, aluminum sash sections with choice of DSB, acrylic, polycarbonate, tempered, or wire glazing, as well as movable center posts, 3″ (76 mm) track, and jamb seals
Material: Steel
Wind Load: FBC-approved wind load options available
Warranty: 1 year limited
Construction – Product Specifications
End stiles 16-gauge steel
Center stiles 16-gauge steel
Standard mounting Angle mount
Standard track 2″ (51 mm)
Standard springs 10,000 cycle
Weather Stripping Flexible PVC bottom with retainer
Operation Manual pull rope or electric operator
Finish White baked on polyester. Industrial Brown is available on Models 424, 426, 430, 432
Lock Interior mounted slide lock
Wind Load FBC approved wind load options are available
Warranty: 1-year limited
- A chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Bottom sensing edge
- Full sash section with 1/8″ (3 mm) DSB, insulated; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic
- Individual lites with 1/8″ (3 mm) DSB; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic; 1/8″ (3 mm) and 1/4″ (6 mm) polycarbonate; 1/8″ (3 mm) and 1/4″ (6 mm) tempered; 1/4″ (6 mm) wired
- 3″ (76 mm) track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2″ (51 mm) or 3″ (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Warehouse Package – Quick install system available
- Impact Section Available
Panel Options
Ribbed Panel Flush
Glazing Options
Aluminum Sash Section with DSB Glazing – All Models
Insulated DSB (24”x 7”) – Available only on 424, 426, 430, 432:
Color Options
White – All Modeal Industrial Brown – Available only on 424, 426, 430, 432:
Product Literature
Sectional Doors System Brochure
Specifications
Sectional Steel Door 416 Specs
Sectional Steel Door 420 Specs
Sectional Steel Door 424 Specs
Sectional Steel Door 430 Specs
Sectional Steel Doors Full Line Specs
BIM
Sectional Steel Doors Model 416 BIM
Sectional Steel Doors Model 420 BIM
Sectional Steel Doors Model 424 BIM
Sectional Steel Doors Model 430 BIM
Warranty

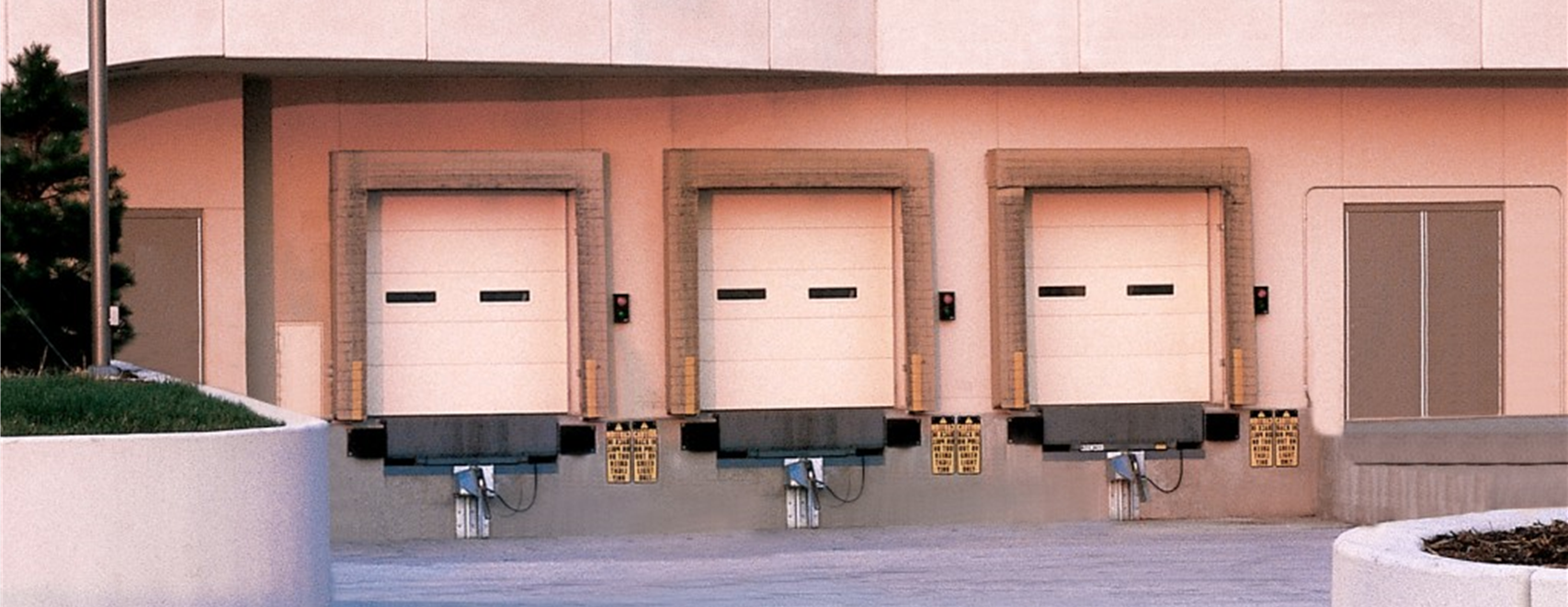

Model 416
Superior Durability For Applications That Require High Security & Frequent Use.
Model 416
The Sectional Steel Door Model 416 is a strong, durable, and versatile option designed for heavy-duty commercial and industrial applications. This door is available in 16-gauge galvanized steel, with sizes ranging up to 32’2″ in width and 21’1″ in height. With an array of options, the Model 416 can be easily customized to meet any project requirement that requires an extra heavy-duty door.
Max Width: 32’2″
Max Height: 20’1
Exterior Steel Gauge: 16-gauge galvanized steel
Model 420 / Model 424
Heavy Duty Doors Ideal For Distribution Centers, Service Stations & Vehicle Storage.
Model 420
Heavy-duty doors, model 420, feature a ribbed exterior and are robust, durable, and versatile. They are ideal for distribution centers, service stations, and vehicle storage.
Max Width: 32’2″ Max Height: 20’1
Exterior Steel Gauge: 20-gauge galvanized steel
Model 424
Heavy-duty doors, model 424, feature a ribbed exterior and are robust, durable, and versatile. They are ideal for distribution centers, service stations, and vehicle storage.
Max Width: 30’2″ Max Height: 24’1
Exterior Steel Gauge: 24-gauge galvanized steel
.
Model 430
Solid Construction is ideal for small warehouses and service stations.
Model 430
The non-insulated sectional steel door model 430 is available for various medium-duty applications. Its solid construction is ideal for small warehouses and service stations and is customizable to any project specification with various additional options.
Max Width: 20’2″
Max Height: 16’1
Exterior Steel Gauge: Nominal 24-gauge galvanized steel
Non-Insulated Sectional Steel Model Comparison
Extra Heavy Duty | Heavy | Duty | Medium Duty | |
|---|---|---|---|---|
| Model | 416 | 420 | 424 | 430 |
| Nominal thickness | 2″ (51 mm) | 2″ (51 mm) | 2″ (51 mm) | 2″ (51 mm) |
| Maximum standard width | 32’2″ (9804 mm) | 31’2″ (9500 mm) | 30’2″ (9195 mm) | 20’2″ (6147 mm) |
| Maximum standard height | 21’1″ (6426 mm) | 24’1″ (7341 mm) | 24’1″ (7341 mm) | 16’1″ (4902 mm) |
| Exterior steel | 16-gauge galvanized steel | 20-gauge galvanized steel | 24-gauge galvanized stee | Nominal24-gauge galvanized steel |
| Exterior surface | Flush | Ribbed | Ribbed | Ribbed |
| Exterior finish color | White baked-on polyester | White baked-on polyester | Industrial Brown and White baked-on polyester | Industrial Brown and White baked-on polyester |
| End stiles | 16-gauge galvanized steel | 16-gauge galvanized steel | 16-gauge galvanized steel | 16-gauge galvanized steel |
| Intermediate stiles | 16-gauge galvanized steel | 16-gauge galvanized steel | 16-gauge galvanized steel | 16-gauge galvanized steel |
| Lock | Interior-mounted slide lock | Interior-mounted slide lock | Interior-mounted slide lock | Interior-mounted slide lock |
