Rolling Counter Doors
Superior Performance & Engineered To Last
Overhead Door™ rolling counter doors provide many attractive solutions for smaller openings up to 20′ wide and 9′ high. Our comprehensive system of counter doors encompasses three basic types: metal curtains, wood curtains, and integral frame and sill.
Strength • Versatility • Good Looks
These doors are ideal for small-opening applications where security is essential and a non-rated door is appropriate. Typical applications include concession areas, cafeterias, pharmacies, parts-storage areas, and ticket windows..
Ideal Applications Include
Public Facilities & Security
Healthcare
Family Housing
Food & Beverage
Automotive
Government Facilities
Rolling Counter Doors Overview
A variety of intelligent, versatile, and stylish solutions to satisfy a variety of commercial, retail, corporate, and professional applications. Distinguished by their painted aluminum, galvanized, or stainless steel slat curtain finish, Rolling counter doors are designed to fit openings 20′ wide and 9′ high.
A rolling counter door for any environment
Choice of aluminum, steel or stainless steel offers durable, attractive, and versatile solutions for retail, commercial, and industrial applications for openings up to 20′ wide and 9′ high (6096 mm and 2743 mm)
Integral frame and sill counter doors in sizes up to 12’5″ wide and 6’5″ high (3785 mm and 1956 mm) provide the convenience of a factory-assembled unit and an attractive finished look
Wood curtains in Douglas fir, red oak, white oak, birch, or exotic species for openings to 12′ wide and 8′ high (3658 mm and 2438 mm) complement interior design features
Options provide design flexibility and simplify operation
- Choice of curtain materials and a variety of finish options for enhanced design flexibility
- Motor operation option and an array of operator controls simplify door operation (not available on the integral frame and sill counter doors)
Built to last
Top-quality materials, excellent field service and an optional maintenance program contribute to extended door life, low maintenance costs, and maximum productivity
Up to 24-month limited warranty Approximately 200
RAL Powder Coat Finishes
The color palette specifying powder coat finishes in approximately 200 colors is available. Color may also be matched to the architect’s specifications to best complement the facility’s look.
Rolling Counter Doors Overview
A variety of intelligent, versatile, and stylish solutions to satisfy a variety of commercial, retail, corporate, and professional applications. Distinguished by their painted aluminum, galvanized, or stainless steel slat curtain finish, rolling counter doors are designed to fit openings 20′ wide and 9′ high.

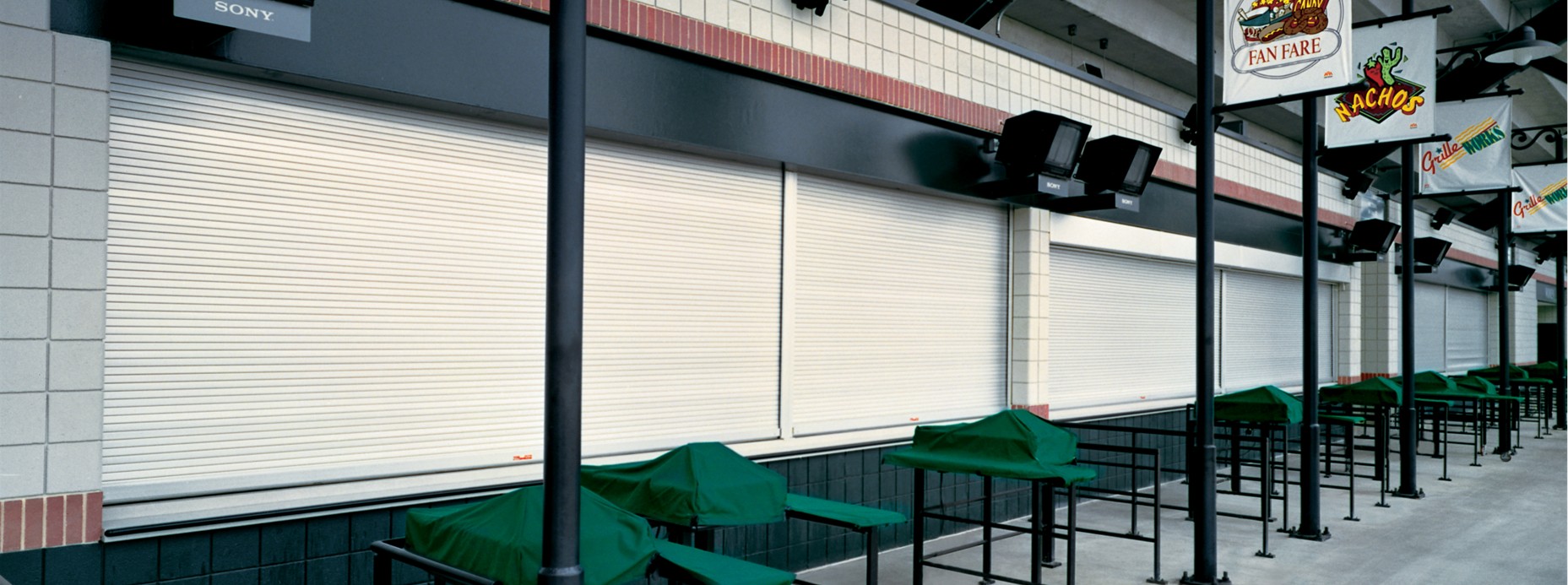

Rolling Counter Doors 650/651/652
A variety of innovative, versatile, and stylish solutions to satisfy a variety of commercial, retail, corporate, and professional applications. Models 650, 651 & 652 are also chic enough for a variety of interior uses, including cafeterias, pharmacies, and retail settings. These doors are fabricated from 22-gauge galvanized steel and can withstand heavy usage or industrial environments, such as stadium concession areas and parts storage areas.
Model 652, fabricated from aluminum, can withstand heavy usage or industrial environments, such as stadium concession areas and parts storage areas.
Models 650
Material: Steel
Max Width: 20’0″ (6096 mm)
Max Height: 9’0″ (2743 mm)
Warranty: 24-month limited
Curtain Material: Galvanized steel
Models 651
Material: Steel
Max Width: 20’0″ (6096 mm)
Max Height: 9’0″ (2743 mm)
Warranty: 24-month limited
Curtain Material: Stainless Steel
Models 652
Material: Steel
Max Width: 20’0″ (6096 mm)
Max Height: 9’0″ (2743 mm)
Warranty: 24-month limited
Curtain Material: Aluminum
Wood Counter Doors 665
The richness and warmth of natural wood make the Model 665 a natural choice for applications where a wood counter door is desired to complement interior design elements. These handsome, handcrafted doors are available in a variety of wood species and lend unparalleled elegance to applications in hotels, banks, churches, libraries, and offices.
Overhead Door™ wood counter doors are constructed of high-quality flat slats for a good, tight fit and provide attractive, handcrafted, wood roll-up doors
Material: Wood
Max Width: 12′ (3658 mm)
Max Height: 8′ (2438 mm)
Warranty: OEM limited
Curtain Material:
- Red oak
- Douglas Fir
- White Oak
- Birch
Integral Frame Rolling Counter Doors
The Model 655 features a clear anodized aluminum curtain and a #4 stainless steel hood, frame, and sill, satisfying a range of project requirements with ease and style. They offer the advantages, convenience, and quality of a factory assembled unit, ideal for various applications, particularly in food service areas.
Model 657 features a #4 stainless steel curtain and hood, frame, and sill, and satisfies a range of project requirements with ease and style. They offer the advantages, convenience, and quality of a factory assembled unit, ideal for various applications, particularly in food service areas.
Rolling Counter Model 658 features a primed galvanized steel curtain and a #4 stainless steel hood, frame, and sill, satisfying a range of project requirements with ease and style. They offer the advantages, convenience, and quality of a factory assembled unit, ideal for various applications, particularly in food service areas.
Model 655
Material: Steel
Material Gauge: 16 gauge stainless steel
Max Width: 12’5″ (3785 mm)
Max Height: 6’5″ (1956 mm)
Curtain Material: .04″ (1 mm) aluminum slats
Model 657
Material: Steel
Max Width: 12’5″ (3785 mm)
Max Height: 6’5″ (1956 mm)
Warranty: OEM limited
Curtain Material: Interlocking 22-gauge stainless steel slats
Model 658
Material: Steel
Max Width: 12’5″ (3785 mm)
Max Height: 6’5″ (1956 mm)
Warranty: OEM limited
Curtain Material: Interlocking 22-gauge primed galvanized steel slats
