Overhead Door™ Fire-Rated Doors

Many sizes and styles meet or exceed industry fire safety testing standards, including Underwriters Laboratories (UL & ULC) requirements. Added protection features, such as the Fire Sentinel®, horns, and strobes, are available.

FireKing^® Rolling Steel Fire Doors and Counter Doors provide a practical, innovative safety and fire protection solution. Our line of fire-rated products features a forward-thinking design that outperforms industry standards in all areas, including easy testing capability, smooth, quiet operation, and reliable, long-lasting performance.

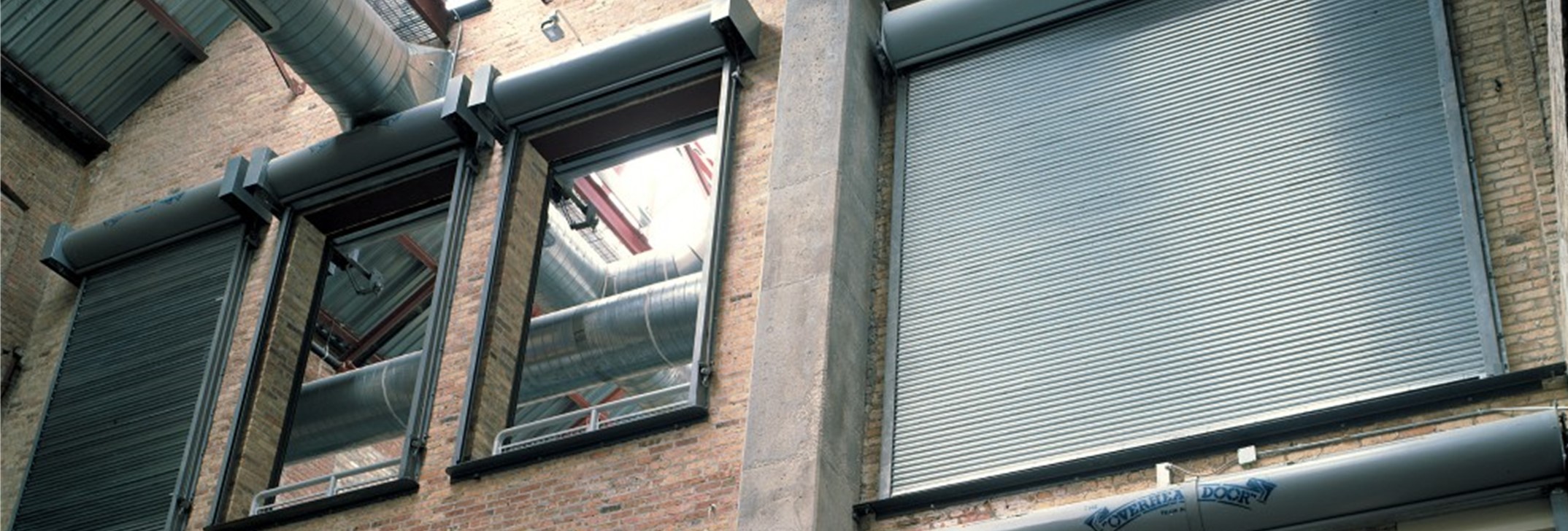

​​​​​​​​​​​​​​​​​​​FireKing^® Rolling Service Fire Doors – 630 / 631 / 634 / 635

​​The FireKing® Fire Doors are fire-rated rolling service doors that offer superior protection wherever a listed fire door is required. Typical applications include: factories, warehouses, mills, distribution centers, and parking garages. Customized fire doors are available for conveyor openings. These fire-rated service doors feature an innovative floor reset system that allows the door to be easily drop tested and mechanically reset at any time without requiring special tools. Additional protection features, such as Fire Sentinel® and FireLite® vision lites, are available options.

Model 630

FireKing^® Fire-Rated Door ​Model 630 is ideal for projects requiring a listed rolling service fire-rated door available in labels up to 3 hours, for mounting in masonry, steel, or wallboard. This fire-rated service door also offers the choice of galvanized or stainless steel in 18-, 20-, or 22-gauge thickness, as well as flat or curved slat profiles, with approximately 200 optional powder coat color options. This reliable, fire-rated door is as strong and durable as it is aesthetically pleasing.

Material:  Steel

Max Width:  41’2” (12548 mm)

Max Height:  25’4” (7722 mm)​

Warranty:  2-year material and workmanship

Model 631

FireKing^® Fire-Rated Door Model 631 fire-rated doors are an ideal choice for projects requiring a listed rolling service fire door where both safety and economy are priorities. This 24 gauge steel door is available in up to a 3-hour label for doors up to 152 sq ft (14121 sq m). A UL oversized label is available for doors over 152 sq ft (14121 sq m), but less than 12′ (3658 mm) in height.

Material: Steel

Max Width: 14′ (4267 mm)

Max Height: 12′ (3658 mm)

Warranty: 2-year material and workmanship

Curtain Material: Painted galvanized

Model 634

​​FireKing^® Fire-Rated Door Model 634 fire-rated doors are the highest-rated fire doors we offer and are ideal for projects requiring a listed rolling service fire door. These doors are available with a 4-hour label for openings up to 152 sq. ft. (14121262 sq mm). A UL oversized label is available for openings up to 683 sq ft (63452 sq m).​

Material: Steel

Max Width: 41’2” (12548 mm)

Max Height: 25’4” (7722 mm)

Warranty: 2-year material and workmanship

Curtain Material: Painted galvanized / stainless steel

Model 635

​​FireKing^® Fire-Rated Door Model 635 is a rolling insulated fire-rated door that offers the triple benefits of insulation, fire protection, and sound attenuation. This one door eliminates the need for separate fire and insulated doors. The insulated FireKing^® fire-rated door meets numerous performance requirements, including those of UL, FM, New York City, California (CSFM), as well as an optional “S” smoke label with a rating of up to four hours.

This door offers the protection of a fire-rated door combined with the energy efficiency and sound transmission control of an insulated door. These fire-rated doors offer up to a four-hour rating on masonry, concrete and steel walls, and up to a three-hour rating on non-masonry walls to satisfy a variety of applications.​​

Material:  Steel

Max Width:  24’0″ (7315 mm)

Max Height:  24’0″ (7315 mm)

Warranty:  24 month limited

Curtain Material:  Galvanized or stainless steel

​Fire-Rated Counter Doors

Fire-rated counter doors, Model 640, printed galvanized steel, and Model 641, featuring 22-gauge steel, are ideal for applications where safety is as important as style. The 640 and 641 model doors are perfect for openings that require a counter-type fire-rated door. Typical applications include factories, schools, concessions, hospitals, cafeterias, and retail settings.

The Fire-Rated Counter Door Model 640 features exposed components made of primed galvanized steel. ​

The Fire-Rated Counter Door Model 641 features exposed stainless steel components.

Model 640​​

Curtain Material: Galvanized steel

Model 641

Curtain Material: Flat slat curtain design in No. 4 stainless steel finish

Integral Frame & Sill Fire Doors

​​​​​​​​​​​​​​​​​​​​Fire-Rated Counter Doors with Stainless Steel Curtain, Frame, and Hood​

Integral frame counter fire doors (Models 660, 662) offer a handsome finished appearance for various applications, including food service counters. Available for opening sizes up to 9’5” x 55” (2870 mm x 1346 mm), these doors carry a 1-1/2 hour UL Class B label and are factory assembled as a complete unit with fully welded frames. The frame comprises 16-gauge jambs and header, hood, and fascia, and is complemented by a 14-gauge sill. Added protection features, such as the Fire Sentinel® are available.

Models 660 / 662

ntegral frame counter fire doors provide a handsome finished appearance for various applications, including food service counters. The 660 Series integral frame doors are factory-assembled as a complete unit with fully welded frames.

Material: Steel

Max Width: 9’5″ (2870 mm)

Max Height: 4’5″ (1346 mm)

Warranty: OEM limited

Model 660 Curtain Material: stainless steel

Model 662 Curtain Material: galvanized steel
