Security Grilles
Our Upward-Coiling Security Grilles provide attractive solutions for various retail, commercial, and industrial applications. Our side-folding grilles boast the shortest stacking dimension of any grille available today and feature a handsome clear anodized finish (standard) in various patterns and optional colors. We also offer a line of upward-coiling grilles.
#
Security Grille, Model 671, Outside Patio & Entrance
High-Performance • Low Maintenance • Attractive • Secure
They are constructed of aluminum, stainless, or galvanized steel — with an optional electric motor — these grilles are designed for durability and easy operation. Our comprehensive line of security grilles affords both reliability and peace of mind.
Security Grilles
We offer a complete line of security grilles, including upward-coiling and side-folding grilles, to meet your needs.
Upward-coiling grilles are designed for durability and easy operation. They are constructed of aluminum, stainless, or galvanized steel, with the option to add an electric motor.
Side-folding grilles offer the shortest stacking dimension of any grille available today and feature a handsome clear anodized finish (standard) in a variety of patterns and optional colors. This is a great option when headroom is limited, or the grille must follow a radius.
EverServe™ Springless Security Grilles – Model 671S
Provides customers with high cycle performance, security, durability, maximized air movement, and visual access while delivering a reliable system, minimizing downtime with ease of serviceability. The springless design builds on the proven construction of the Overhead Door™ Rolling Security Grille line, adding significant enhancements to provide 15 times the standard cycle life.
This upward-coiling security grille allows maximized air movement and visibility while featuring universal components to increase the ease of serviceability.
#

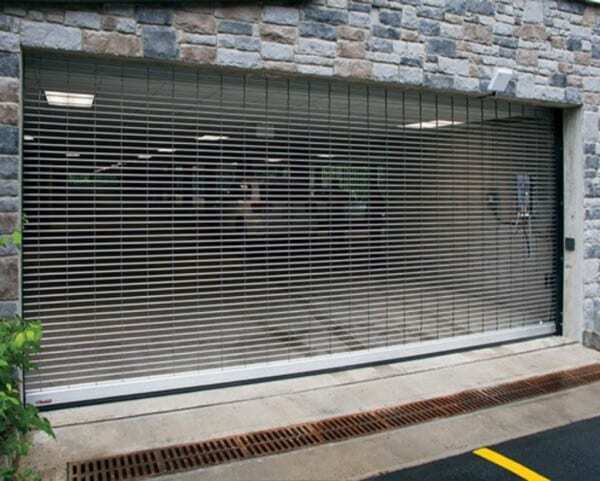

Security Grille, Model 671s, Outside Parking Garage
Advantages of a Springless Rolling Security Grille
The EverServe™ Grille platform is an industry-leading, performance-driven solution to enhance our Rolling Security Grille product line. The EverServe™ Grille system provides customers with high cycle performance, security, durability, maximized air movement, and visual access while delivering a reliable system, minimizing downtime with ease of serviceability.
The springless design builds on the proven construction of the Overhead Door™ Rolling Security Grille line, adding significant enhancements to provide 15 times the expected cycle life.
Standard Max Width: Up to 30′ depending on gauge and slat type
Standard Max Height: Up to 14’4″ depending on gauge and slat type
Curtain Material: Galvanized steel links and solid rods with mill aluminum spacer tube
Curtain Pattern
Straight lattice 9″ center vertical links with 2″ center rod spacing
Door Roll
Directly driven, springless roll with the integral shaft; Self-aligning greaseable sealed bearings; Door does not require a counterbalance device
High Usage Guides
Three structural steel angles with UHMW wear strips and PowderGuard® Premium powder coat finish in black
Hood
24-gauge galvanized steel primed black; Matching motor and end cover provided
Bottom Bar
Tubular extruded aluminum with mill finish
Standard Mounting
The interior or exterior face of the wall
Operation
Direct drive integrated gear/motor/brake assembly; Drive assembly and limit sensors are factory pre-assembled; Manual hand chain for a power outage. Horsepower appropriate to door size/weight; 230V AC 3-phase motor (operating range 208-245V)
Safety Features
Built-in braking mechanism; Photoelectric safety sensors with commercial guards
Limited Warranty
24-month, 300,000 cycles
EverServe™ Springless Security Grille 671s Benefits
- Springless operation eliminates the need for a counterbalance
- 300,000 cycle life performance and functionality with minimum maintenance requirements
- The continuous rod curtain design combined with the high-strength curtain materials increases the durability and security of this grille system
- Universal components for ease of maintenance
- Floor-level controller for ease of access control and maintenance
- Direct drive integrated gear/motor/brake assembly; built-in braking mechanism provides additional peace of mind against uncontrolled curtain travel
- Field-installable accessories such as radio controls or motion detectors to match a wide range of application requirements
- 24-month limited warranty on the door system
Motor options*: Available for supply voltages 220-240V AC 1-phase; 440-480V AC or 575V AC 3-phase (440-480 and 575V AC require a transformer).
Curtain Pattern: Brick 9″ on center vertical links with 2″ on center rod spacing
Curtain Material: Mill aluminum link, galvanized steel solid rod, with mill aluminum spacer tube; Clear anodized aluminum link, galvanized steel solid rod, and clear anodized aluminum spacer tube; #4 or #2B stainless steel link, solid rod, and spacer tube and PowderGuard® Premium finish.
Guides: PowderGuard® Premium finish, PowderGuard® Zinc or Textured finish
Hood: PowderGuard® Premium or PowderGuard® Textured finish; stainless steel with #4 brush finish; anodized or mill finish aluminum
Safety Devices: Monitored electric sensing edge; an additional set of photoelectric sensors
Control Panel: IP65 (NEMA 4/4X equivalent) control panel
Actuators: Push buttons, loop detectors, radio control, motion detectors, or any combination thereof available for door operation/control
*If the voltage is too low, a transformer may be needed. Larger doors may not be available with 1-phase power. Consult the factory for information.
Powder Coat Color Options
PowderGuard® Premium powder coat finish options are available in approximately 200 colors and custom matching to the specification on the hood, curtain, bottom bar, guides, and head plates. Consider a powder coat to match aluminum clear or bronze anodized for a smooth, durable finish.
PowderGuard® Weathered finish, a thicker, industrial textured powder coat, is available in 11 colors providing enhanced scratch resistance and aiding in hiding the dirt and blemishes that often occur in commercial environments.
Upward Coiling Security Grilles -Models 670 / 671 / 674
These grilles provide an attractive yet functional means to secure areas where public access must be restricted without blocking air, light, or sight. A wide range of options makes these grilles ideal for interior or exterior use in various retail, industrial, and commercial settings.
#
Security Grille, Model 670, Retail Store in Mall
Model 670
Features an Aluminum mill curtain material finish
Operation: Manual unless size requires chain hoist
Panel Width: straight lattice (standard); staggering brick; straight with polycarbonate panels
#
Security Grille, Model 671, Food Court
Model 671
Fabricated Galvanized Steel
Operation: Manual unless size requires chain hoist
Panel Width: straight lattice (standard); staggering brick; straight with polycarbonate panels
#
Security Grille, Model 674, Perforated
Model 674
Aluminum clear anodized curtain material finish
Operation: Manual unless size requires chain hoist
Curtain Perforated aluminum panels
Curtain Material / Finish:
670: aluminum, mill finish
671: galvanized steel or optional stainless steel (2B or 4)
674: aluminum, clear anodized
Pattern
670/671: straight lattice (standard); staggered brick; straight with polycarbonate panels
674: perforated aluminum panels
Bottom bar
670: Extruded aluminum, mill finish
671: Double-angle steel
674: Extruded aluminum, clear anodized
Guide type
Guide channels are extruded aluminum with continuous wear strips;
- 670/671 mill finish;
- 674 clear anodized;
- Wall angles and any packout angles are galvanized steel
Mounting the Interior face of the wall is standard. Between jamb options available
Brackets
Steel with black powdercoat finish
Pipe
Steel sized for maximum deflection of .03” per linear foot
Springs
Oil tempered, 20,000 cycles, torsion springs
Locking
670/671: Slide bolt for manual and crank operation; chain lock for chain hoist operation
674: Center locking bottom bar, with 1/2” diameter steel throw rods; standard with cylinder locks on both sides or thumb turn on secured side.
Warranty
12 months limited
Upward Coiling Security Grilles, Benefits
Choice of aluminum, galvanized, or stainless steel
The Model 670 features an aluminum curtain with optional fire-retardant polycarbonate inserts.
The Model 671 is fabricated of galvanized steel. Stainless steel and fire-retardant polycarbonate inserts are also options. The standard curtain pattern for the Model 670 and 671 is a straight lattice configuration. A staggered brick design is optional.
The Model 674 features a perforated aluminum curtain that provides increased security, visibility, and light infiltration in an attractive design. Ideal for interior applications, the aluminum construction of the Model 674 is lightweight – while the perforated design enhances security without hindering air infiltration and visibility.
High-performance, low maintenance
The counterbalance assembly features heavy-duty helical torsion springs in a steel tube or pipe barrel to provide long and reliable service. Guides feature silicon woolpile strips or PVC inserts for easy operation and noise reduction. Surfaces are factory pre-finished to minimize field preparation and enhance the durability of the finish. An optional crank or electric motor further simplifies grille operation. An optional heavy usage package (670, 671) provides extended life in applications requiring higher cycles, such as parking garages and service access gates.
Optional electric operation
- Available with an electric operator to provide automatic passage for various commercial and industrial uses, including schools, hospitals, libraries, public access buildings, and parking garages.
- Our commercial operators are designed to work with these grilles to ensure precise, smooth, and safe operation.
- Options include:
- Entrapment protection, including monitored photocells or monitored safety edge
- Emergency egress operator allows for remote activation and notification of power failure • Push-button, key or combination stations; surface or flush-mounted for interior or exterior locations.
- Vehicle detectors, key card readers, door timer controls
- Treadle or pull-switch stations
- Keypad entry
Options:
Operation: Electric operator, chain hoist, removable awning crank or crank box
Electric operator with automatic emergency egress; compliant with IBC 1008.1.4.4 & NFPA 101
Controls: Time clock, card reader, keypad access
Hood: Primed galvanized or stainless steel, mill-finished or transparent anodized aluminum
Fascia and back hoods: aluminum, stainless steel
Optional guide finishes: clear or bronze anodized, stainless steel
PowderGuard® premium powder coat paint finish in approximately 200 colors and custom matching to the specification available on the hood, curtain, bottom bar, guides, headplates.
PowderGuard® Zinc and PowderGuard® Weathered finishes
Heavy usage package
Locking options include cylinder locks, slide bolts, security rods, and interlocks.
Emergency Egress Options
For public building applications, where grilles are utilized to secure access to public areas, an emergency egress may be necessary to prevent entrapment in an emergency or power failure. Applications, including hospitals, schools, office buildings, and libraries, are ideal for adding this safety option to the door system.
This feature avoids entrapment as well as provides immediate access to emergency personnel. We offer two different ways to implement the emergency egress option. Both ways meet the IBC 1008.1.4.4 requirements.
- One option is the auto-unlock and auto-release option using an egress electric operator system designed specifically to work with Overhead Door™ emergency egress.
- The other option is the auto-unlock and manual release which can be operated with standard Overhead Door® commercial operators.
Powder Coat Color Options
PowderGuard® Premium powder coat finish options are available in approximately 200 colors and custom matching to the specification on the hood, curtain, bottom bar, guides, and head plates. Consider a powder coat to match aluminum clear or bronze anodized for a smooth, durable finish.
PowderGuard® Weathered finish, a thicker, industrial textured powder coat, is available in 11 colors providing enhanced scratch resistance and aiding in hiding the dirt and blemishes that often occur in commercial environments.
Advanced Performance Upward Coiling Security Grilles Model 676
RapidGrille® AP Security Grille
The RapidGrille™ Advanced Performance Upward Coiling Security Grilles Model 676 was developed to supply advanced performance in industrial, security, and general commercial applications where tenants’ security, long-term asset value, and minimized interruption to facility access are primary concerns.
This security advanced performance grille provides facilities with maximized air movement and visual access while delivering more safety features than a standard security grille. The reliable springless design and operation provide reliable performance and asset longevity.
Advanced Performance & Safety Features:
The RapidGrille® Advanced Performance Security Grille provides facilities with maximized air movement and visual access while delivering more safety features than a standard security grille. The reliable springless design and operation provide reliable performance and asset longevity. This grille system’s design delivers additional safety features with a built-in braking mechanism, photoelectric sensors with commercial-grade guards, wireless self-monitoring sensing edge and motor cover. The NEMA 4X control panel provides a built-in cycle counter and timer to close function allowing for ease of operation while providing rich system diagnostics.
Max. Standard Width: 30’4″ (9,246 mm)
Max. Standard Height: 14’4″ (4,369 mm)
Max Total Area: 240 ft²*
#
RapidGrille, Model 676, Arched
Door Options:
- Full-closure grilles are available in tempered glass, fire-retardant polycarbonate, painted perforated steel, and aluminum curtains for added security and full functionality in any application.
- Open-air grilles maximize ventilation and visual access without compromising security.
- A wide variety of side-folding grille curtain patterns and finishes, colors and styles afford design flexibility.
- The standard clear anodized finish on all side-folding grilles lends unsurpassed beauty and durability.
- Custom color matching is available for most side-folding and upward coiling grilles.
- Small to large sizes are accommodated based on needs of job site requirements.
Features:
- Advanced pe:performance upward-coiling grilles
- Upward-coiling grilles
- Side-folding grilles
- The shortest-stacking, lowest-profile side-folding grille available
- Innovative engineering enhances design capabilities
- A wide range of options add versatility and style
- Standard anodized finish and a spectrum of color options
Rapidgrille ® APs, Benefits
The RapidGrille® Advanced Performance Security Grille provides facilities with maximized air movement and visual access while delivering more safety features than a standard security grille. The reliable springless design and operation provide reliable performance and asset longevity.
The continuous rod design combined with the high-strength curtain materials of the RapidGrille® AP increases the durability and security of this system
Powder Coat Color Options
PowderGuard® Premium powder coat finish options are available in approximately 200 colors and custom matching to the specification on the hood, curtain, bottom bar, guides, and head plates. Consider a powder coat to match aluminum clear or bronze anodized for a smooth, durable finish.
PowderGuard® Weathered finish, a thicker, industrial textured powder coat, is available in 11 colors providing enhanced scratch resistance and aiding in hiding the dirt and blemishes that often occur in commercial environments.
Side-Folding Full Enclosure Security Grilles – Models 675 / 677 / 678 / 679
Overhead Door™ side-folding full-closure grilles are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls and airport concourses. The full closure side folding grille includes four-panel materials: perforated steel, clear polycarbonate, tempered glass, and aluminum. All four models are available in both standard-body and wide-body versions.
Operation: Manual unless size requires chain hoist
Curtain Frame: Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick
Panel Width: 7” (178 mm) standard body; 11 1/4” (298 mm) wide body.
Door Options:
- Custom radii and curves
- Thumb-turn guards
- Vertical adjustment upward or downward
- Emergency Egress Door
#
Side-Folding Full Enclosure Security Grilles, Model 675, Clear Polycarbonate For Visual Access
Model 675
Features painted perforated steel for full ventilation. Visibility: 51% of 4-3/4″ (121mm) viewable area. These closures are ideal for applications that require a secure barrier ag;.ainst theft and debris, such as retail applications in malls, airports, and concourses.
#
Side-Folding Full Enclosure Security Grilles, Model 677, Clear Fire-Retardant Polycarbonate For Visual Access
Model 677
Side Folding Full Enclosure Security Grilles Model 677 features clear fire-retardant polycarbonate for visual access and nonbreakable durability. Visibility: 100% of 4-3/4″ (121 mm) viewable area.
#
Side-Folding Full Enclosure Security Grilles, Model 678, Tempered Glass
Model 678
Features tempered glass for a crystal-clear view and high durability. Visibility: 100% of 4-3/4″ (121mm) viewable area. These closures are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls, airports and concourses.
#
Side-Folding Full Enclosure Security Grilles, Model 679, Solid Aluminum
Model 679
Features a full-height, solid aluminum for maximum curtain for maximum security. 7″ standard-width panels constructed of full-height, solid aluminum that slides into aluminum hinges. Visibility: 0%. These closures are ideal for applications that require a secure barrier against theft and debris, such as retail applications in malls, airports, and concourses.
Side-Folding Open-Air Security Grilles – Models 681/683
When security is a priority, but you want to maximize air circulation, light infiltration, and visual access to interior spaces, the side-folding open-air security grilles are an ideal choice. Short on the space required for installation and long on handsome good looks, these grilles secure the premises and guard against theft and debris with superior compactness and varied design possibilities.
Operation: Manual unless size requires chain hoist.
Curtain Frame: Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick.
Panel Width: 7” (178 mm) standard body; 11 1/4” (298 mm) wide body.
Door Options:
- Custom radii and curves
- Thumb-turn guards
- Vertical adjustment upward or downward
- Emergency Egress Door
#
Side-Folding Open-Air Security Grilles, Model 681, Food Court
Model 681
For applications when security is a priority, you want to maximize air circulation, light infiltration, and visual access to interior spaces. Short on the space required for installation but long on handsome good looks, these grilles secure premises and guard against theft and debris with superior compactness and nearly endless design possibilities.
- The curtain design incorporates wide body 2″ high bottom plates of truss-like aluminum and 5 1/4″ high top plates that frame each 11 1/4″ wide panel. E
- ach curtain panel is constructed of 1″ aluminum plates spaced at 12″ horizontal intervals incorporating three vertical rods spaced 1 7/8″ and covered with aluminum tubes.
Model 683
Open-air side-folding grilles provide security while allowing air circulation and full visual access to interior spaces. Model 683 offers a wide range of features to fit almost any application where an open-air grille satisfies security requirements, such as in retail environments, malls, schools, offices, and airports.
- The curtain design incorporates minimum 4″ high bottom plates of truss-like clear anodized aluminum and 5 1/4″ high top plates that frame each 6 11/16″ wide panel.
- Each curtain panel is constructed of 1/8″ (3 mm) by 5/8″ (16 mm) by 6″ (15 mm) horizontal clear anodized aluminum links that slide onto 5/16″ (8 mm) vertical rods.
- Links are held in place by 1/2″ (13 mm) clear anodized aluminum spacer tubes on alternate rods. (Only anodized finishes available.)
#
Side-Folding Open-Air Security Grilles, Model 683, Food Court
