High Speed Fabric Doors

The RapidFlex​® series of fabric high speed fabric doors offer solutions for both interior and exterior applications

Interior Fabric High-Speed Doors

The Model 990 is a flexible bottom interior high-speed door built for safety.

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​RapidFlex® Model 991 is an interior door with a strutless design to reduce operational noise and a patent-pending curtain lock that allows the door to withstand pressure and repair it quickly in the field.

Model 992 is made of the same curtain material as the 991 but features struts to allow for larger door sizes and make it easy to replace sections in the field.

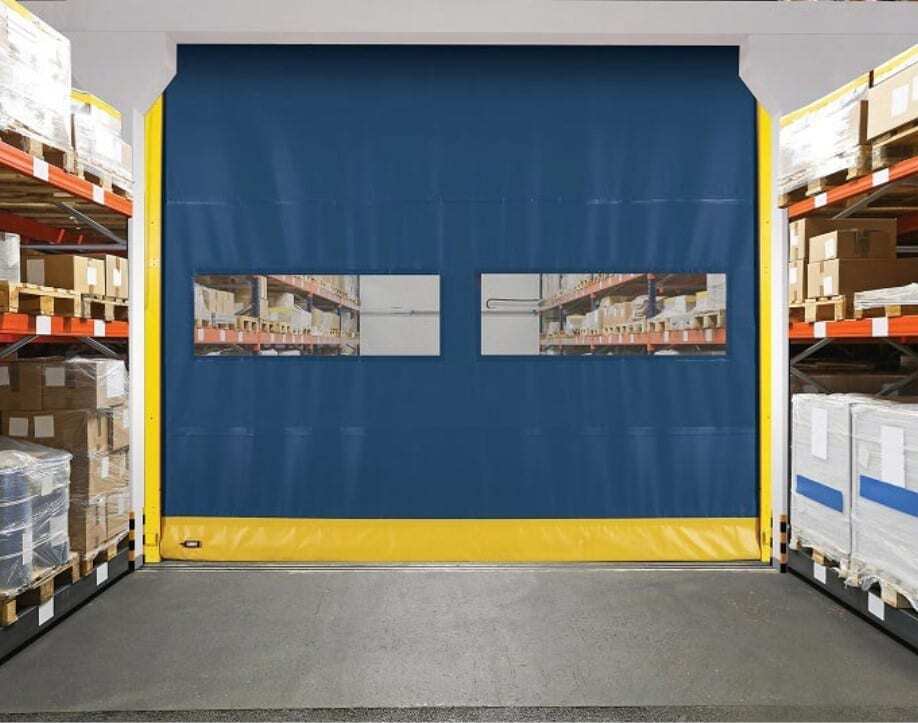

Flexible Bottom High Speed Door – 990

Our flexible bottom high speed interior fabric door, RapidFlex® 990, is ideal for high-traffic manufacturing, pharmaceutical, warehouse, and distribution facilities. Built for safety, this door features a flexible bottom w​ith wireless monitored reversing edge, a built-in drop stop device, and in-plane infrared sensors. ​​

Standard max-width: 12′.

Standard max height: 12′.

Speed: Up to 70″ per second.

Wind Load*​​ Up to 3.0 psf

Curtain lock: Patent-pending curtain-lock design allows for quick and easy repair in the field.

Vision Option: 20” high windows spaced evenly across the width of the door

Break-away self-reset: Designed to break away from the side guides to minimize damage and reset and self-repair after the event.

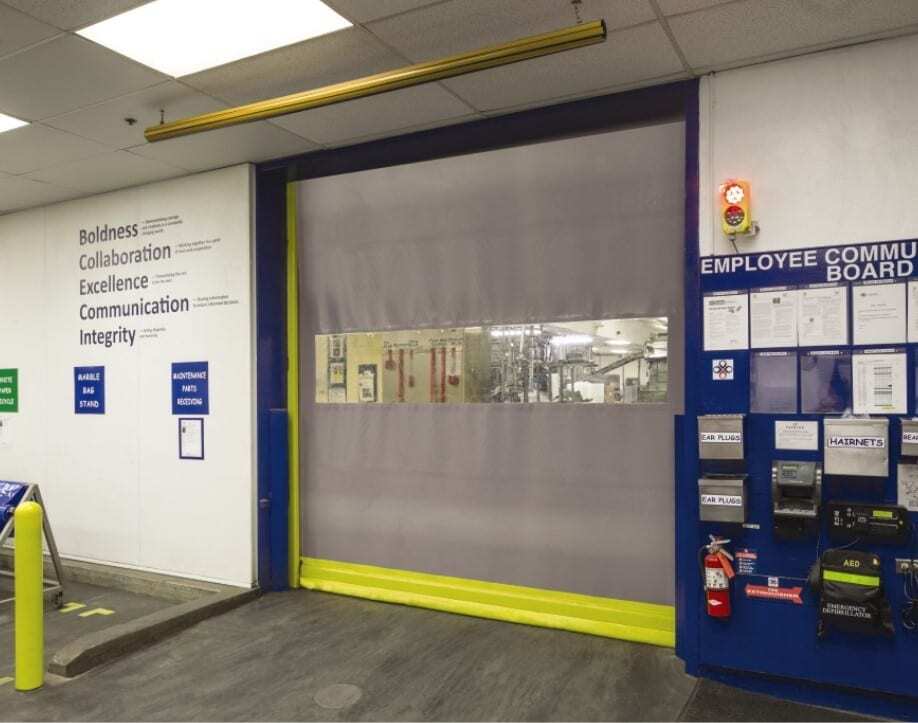

High Speed Interior Fabric Door – 991

Our high speed interior fabric door, RapidFlex® Model 991, is ideal for separating controlled environment spaces such as food and beverage facilities, high-traffic zones, storage rooms, and manufacturing areas to prevent cross-contamination. This door features dual recessed photo eyes and a patent-pending curtain lock which allows the door to withstand pressure and enables it to be repaired quickly in the field.​

New stainless steel options are available.

Standard max-width: 14′

Standard max height: 14′

Speed: Up to 70″ per second

Curtain lock: Patent-pending curtain-lock design allows for quick and easy repair in the field

Wind Load*​​ Up to 7.5 PSF

Certified airtightness: < 0.236 cfm/sq. ft.:- independently tested airtight design to prevent airborne contaminants from entering a controlled environment

Door panel: 2 layers of PVC-coated polyester; 1 layer of polyester weave

Vision Option: 20” high windows spaced evenly across the width of the door

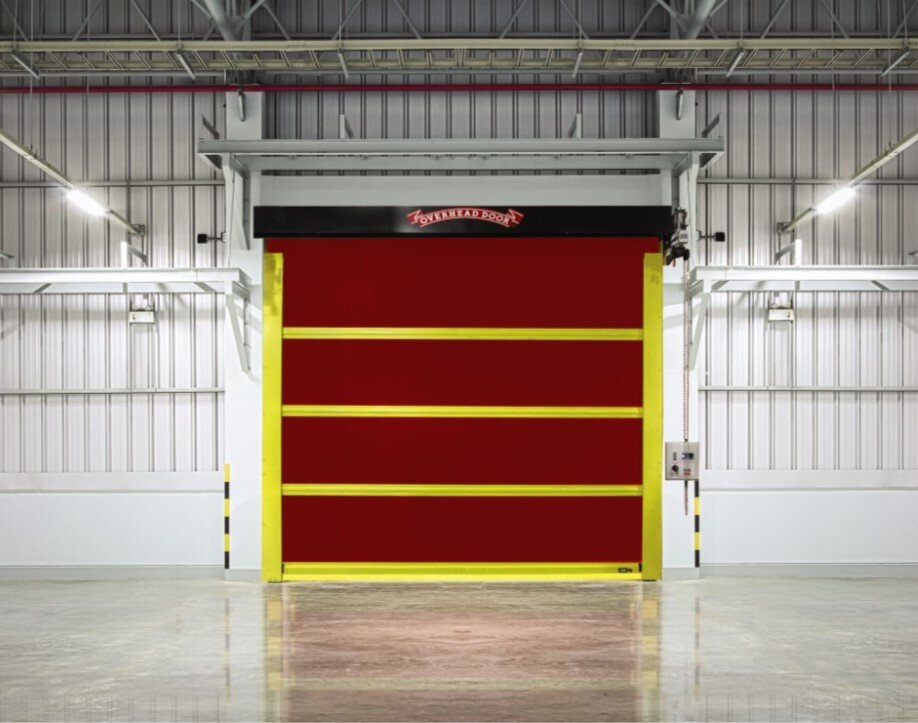

​​​​​​​​​​​​​​​​​RapidFlex® ​ Model 992

Interior strutted high-speed fabric door, and this strutted heavy-duty interior high-speed fabric door with an independently tested static pressure resistance of 76 mph and dynamic ultimate pressure resistance of 53 mph.

Engineered For High Cycles:

Our RapidFlex​® Model 992​ high-speed door features a spring-less design for minimal interruption and maintenance, a direct-mounted gear drive that helps minimize wear and tear, and its variable frequency drive minimizes sudden jolts when the door starts and stops. This high-speed rolling door has a strut design allowing for quick fabric section replacement, and the struts reduce curtain deflection when the door is under pressure.

Low Maintenance:

This high speed fabric door provides a low-maintenance solution with it’s break-away design, impact detection features, push button self-repair and plug and play wiring which reduces the need for a licensed electrician. ​

Standard max-width: 16’0″

Standard max height: 15′

Speed: Up to 65″ per second

Wind Load* Up to 4.0 psf

Wind strut: 1” strut standard

​Break-away sf-reset: Designed to break away from the side guides to minimize damage and reset and self-repair after the event

Interior Application Curtain Material: 2 layers of PVC-coated polyester with 1 layer of polyester weave

Vision: 20″ high vision section across the width

Exterior Fabric High-Speed Doors

The Model 993 and 994 are both strutted high-speed fabric doors. However, they feature a heavier curtain material for exterior applications.  Both models have been independently tested for pressure resistance. Model 993 features pressure resistance of up to 4.0 psf or 76 mph, while the Model 994 features pressure resistance of up to 22psf or 158 mph.

The Model 994 also features a patent-pending bottom wind lock and articulating roller wind struts, reducing operational noise while allowing the door to withstand pressure.

​​​​​​​​​​​​​​​​​​​​​​​​​​​RapidFlex® 993

Exterior strutted high-speed fabric door. RapidFlex ® Model 993 is a strutted, exterior high-speed fabric door with an independently tested static pressure resistance of 76 mph dynamic ultimate pressure resistance of 53 mph… Its industry-leading standard safety features include reversing edge, two infrared obstruction detection sensors, and a doorstop device. Perfect for parking garages, manufacturing, warehouse, and distribution facilities.

Engineered For High Cycles​:

Our RapidFlex​® Model 993 high-speed​​ exterior fabric door has a springless design for minimal interruption and maintenance, a direct-mounted gear drive that minimizes wear and tear, and a variable frequency drive that eliminates sudden jolts when the door is started or stopped.

Rugged Construction:

This high-speed door is made of a durable curtain material of 3 layers of PVC-coated polyester and two layers of polyester weave. It also features a strutted design, which helps to reduce curtain deflection and makes it quick to replace damaged sections.

Low Maintenance:

Our RapidFlex​® Model 993 high-speed door is a low-maintenance solution with a break-away design, impact detection, and push button self-repair. Also, its plug-and-play wiring doesn’t require a licensed electrician.​

Standard max width: 16’0″

Standard max height: 15′

Speed: Up to 65″ per second

Break-away self-reset: Designed to break away from the side guides to minimize damage and reset and self-repair after the event

Wind Load*; Up to 19.5 psf

Wind strut: Metal struts with roller windlocks

Curtain Material: 3 layers of PVC-coated polyester with 2 layers of polyester weave

RapidFlex®  994

RapidFlex​® Model 994 is a strutted, heavy-duty exterior high speed fabric door perfect for large openings and best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex​® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors, and door stop device.

The RapidFlex​® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors, and a doorstop device. Ideal door solution for parking garages, mining, auto/transit, and manufacturing facilities.​

Standard max-width: 24’0″

Standard max height: 20′

Speed: Up to 55″ per second

Pressure/wind resistance: Up to 22.0 PSF

Break-away self-reset: They are designed to break away from the side guides to minimize damage and reset and self-repair after the event.

Wind Load* Up to 22.0 psf

Wind strut: 4” articulating roller wind strut

Curtain Material: 3 layers of PVC-coated polyester; 2 layers of the polyester weave.

Vision Option: 20” high windows spaced evenly across the width of the door
